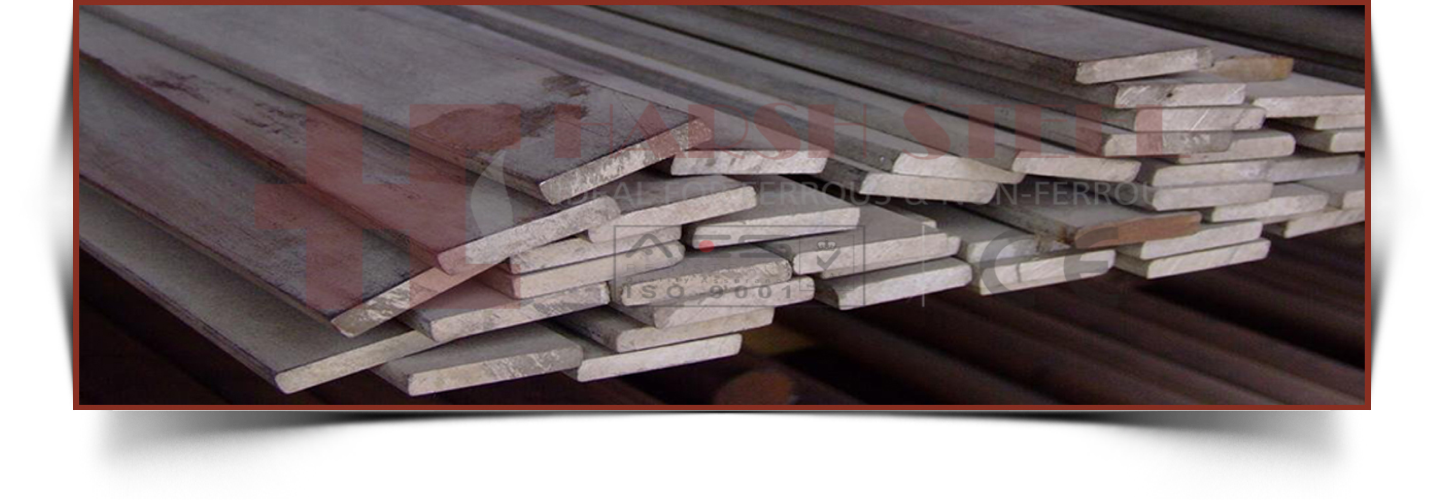

ASTM A789 Flat Bars, ASME SA789 Flat Bars, Super Duplex Steel Flat Bars Supplier, Manufacturer and Exporter in India


Din 1.4362 Super Duplex Steel Flat Bars, UNS S32304 Flat Bars, Super Duplex Steel Flat Rods, Super Duplex Steel Cold Drawn Bars Suppliers in India.

SUPER DUPLEX STEEL UNS S32304 FLAT BAR GENERAL PROPERTIES:

Duplex 2304 is a 23% chromium, 4% nickel, molybdenum-free duplex stainless steel whose structure is a balance of ferritic and austenitic. It has general corrosion resistance similar or better than Alloys 304L and 316L but with yield strength nearly double that of austenitic stainless steels. Its duplex microstructure and low nickel and high chromium contents also allows Duplex 2304 to demonstrate improved stress corrosion resistant properties compared to 304 and 316. It is typically suitable for all applications in the -58oF to 572oF (-50oC to 300oC) temperature range and is designed to feature high mechanical strength, good weldability, good corrosion resistance, high resistance to stress corrosion cracking, good machinability, low thermal expansion, good fatigue properties, high thermal conductivity, and easy fabrication.


SUPER DUPLEX STEEL UNS S32304 FLAT BAR APPLICATION:

Duplex 2304 is generally used in the same applications in which Alloys 304 and 316L are used. Some examples of these applications include:

  • Chloride containing environments
  • Welded pipe systems within the Pulp and Paper, Chemical and Petrochemical, and Water Treatment industries
  • Transportations
  • Heat exchanger tubes
  • Architecture, building, construction
  • Pressure vessels
  • Caustic solutions, organic acids
  • Food industry

SUPER DUPLEX STEEL UNS S32304 FLAT BAR COROSSION RESISTANCE:

  • Due to its high chromium content of 23%, the corrosion resistance properties of Duplex 2304 are practically equivalent to those of Alloy 316L
  • Its duplex microstructure and low nickel and high chromium contents allows Duplex 2304 to have improved stress corrosion resistance properties compared to the 304L and 316L standard austenitic grades.
  • More resistant to pitting and crevice corrosion resistance that Alloy 316L
  • Outperforms Alloys 304L and 316L in stress corrosion cracking resistance in chloride containing aqueous solutions
  • Its corrosion rate in boiling nitric acid (65%) is higher than that of Alloy 316L
  • Its high yield strength allows Duplex 2304 to perform well in abrasion/corrosion applications

SUPER DUPLEX STEEL UNS S32304 FLAT BAR STRUCTURE:

  • Microstructure of Duplex 2304 is very stable compared to molybdenum containing duplex stainless steels
  • Contains approximately equal amounts of ferritic and austenitic in microstructure after annealing in a temperature about

SUPER DUPLEX STEEL UNS S32304 FLAT BAR WELDABILITY:

  • Can be successfully welded by TIG manual and automatic, PLASMA, MIG, SMAW, SAW, FCAW
  • Duplex microstructure renders the alloy less sensitive to hot cracking
  • Pre-heating and post welding is not required
  • Filler metal should be a balanced ferrite/austenitic type

SUPER DUPLEX STEEL UNS S32304 FLAT BAR MECHINABILITY:

  • Exhibits improved machinability properties particularly when considering drilling
  • Low speeds and high feeds will minimize this alloys tendency to work harden

SUPER DUPLEX STEEL UNS S32304 FLAT BAR COMPOSITION:

C Cr Fe Mn Si S P Ni Cu N
Duplex 2304 0.03 max min: 21.5

max:24.5

Bal. 2.5 max 1.0 max 0.03 max 0.04 max min:3.0 max:3.5 min:0.05

max: 2.0

min: 0.05 max: 2.0

SUPER DUPLEX STEEL UNS S32304 FLAT BAR MECHANICAL PROPERTIES:

Grade Tensile Strength ksi (MPa) min Yield Strength 0.2% offset ksi (MPa) min Elongation (% in 50mm) min Hardness (Brinell) MAX Hardness (Rockwell B) MAX
Duplex 2304 87 (600) 58 (400) 25 293 31j

SUPER DUPLEX STEEL UNS S32304 FLAT BAR PHYSICAL PROPERTIES:

Duplex 2304
Density at 68°F (20°C) 0.28 lbm/in3 7800 kg/cm3
Coefficient of Thermal Expansion ax10-6°C-1
68°F to: 212°F (20 -100°C) 13
68°F to 392°F (20 -200°C) 13.5
68°F to 572°F (20 -300°C) 14
Thermal Conductivity W.m-1.K-1
at 68°F
(20°C)
17
at 212°F
(100°C)
18
at 392°F
(200°C)
19
at 572°F
(300°C)
20
Electrical Resitivity (µ_ cm)
at 68°F
(20°C)
80
at 212°F
(100°C)
92
at 392°F
(200°C)
100
at 572°F
(300°C)
105
Specific Heat (Btu/lb/°F)
32°F to: 212°F (20 -100°C) 0.11
  • Width:25mm to 60mm
  • Thickness:5mm to 12mm
  • Finish :Hot Rolled Annealed & Pickled (HRAP)
  • Length:3 to 6 Meters / 12 to 20 feet
  • End Finish :Both ends are marked with special colors.
  • Size tolerance:A276/484 / DIN 1028 (Full specification mentioned below)
  • Packing:Bars are packed in 1000 to 1,200 kgs bundles in waterproof HDPE cloths, Standard Export Seaworthy, Marking of Sizes, Grade, Net Wt, Gross Wt, No of pieces, POD, Origin should Mentioned on Each bundles
  • Marking:Size, Grade, Manufacture name on Each Bars/Pieces
  • Delivery:60-75 Days from the order finalization
  • Marking:Size, Grade, Manufacture name on Each Bars/Pieces
  • Grades:AISI 304 / 304L, 201, 202, 316

We export our SUPER DUPLEX STEEL UNS S32304 FLAT BARS products to Western and Eastern Europe, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia etc. We are sure that we also can cover the requirements requested by your company you can email us at harshsteel@ymail.com for your instant requirements.
